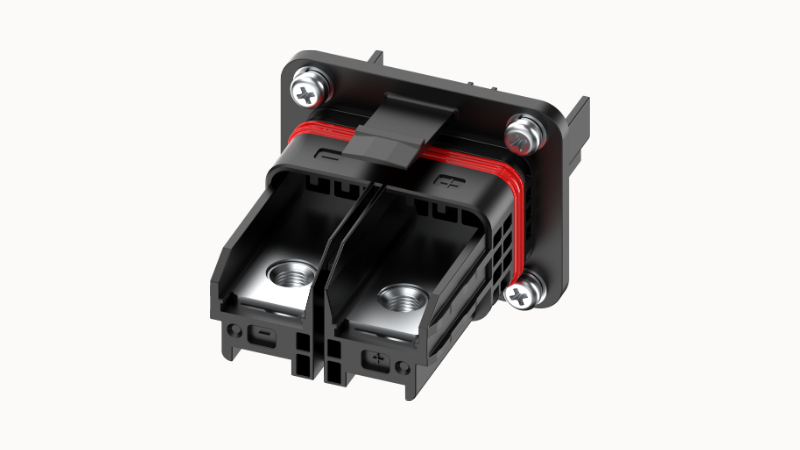

PV-DC-MG-CS-2P-150A-6-CNG331
29011000001
Used in photovoltaic equipment; Rated current 150A; Rated voltage 600V; Cable specifications 35mm²; Protection class IP66 (intermatching); TUV certification
Pin
- 02P
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ IP66 dustproof and waterproof☑ High current 150A
☑ TUV certification
3D model
Versions
| Dimension | 3A |
Environmental parameters
| Degree of protection | MatchingIP66 |
Material data
| Flammability rating | UL94V-0 |
Electrical parameters
| Rated voltage | 600V |
| Rated current | 150A |
Technical specification
| Temperature range | -40℃~+125℃ |
Electrical parameter
| Rated voltage | 600V | ||
| Rated current | 150A |
| Order number | 29011000001 |
| Packing unit | 2 |
| Minimum order quantity | / |
| Products weight (without packaging) | 170 |
