BS6
11070000005

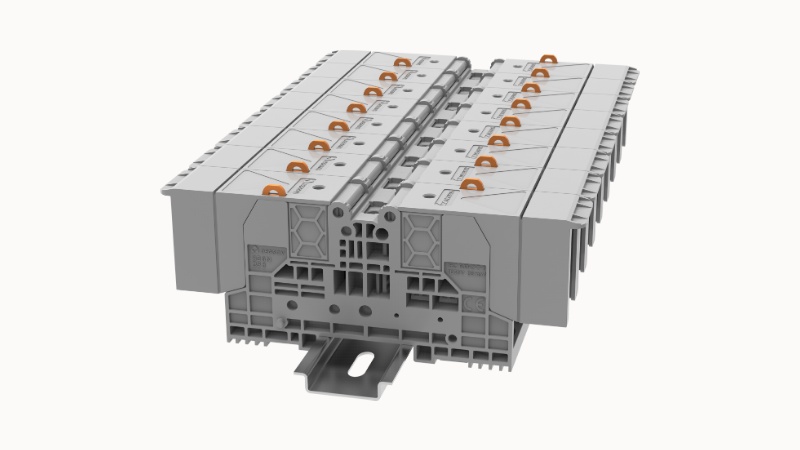

Bolt type rail terminal, connection method: bolt connection, with protective cover, rated voltage: 1000V, rated current: 125A, connection quantity: 2, number of digits: 1, wiring capacity: 2.5-35mm ², AWG: 16-2, width: 27mm, color: gray, installation method: NS35/7.5, NS35/15
Color
Poles
- 01P
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product advantages
☑ Bolt type terminal block, using bolt connection technology, firmly wired☑ A single bolt can connect multiple cable ends and can be used to feed both ends
☑ Closed structure design, combined with protective cover, safe and touch resistant
☑ Matchable identification system, clearly identifying work areas
☑ There is a testing hole in the center for easy circuit testing
- 3D model
- Overview
- Dimension
- Wiring data
- IEC Electrical parameters
- UL Electrical parameters
- Environmental conditions
- Mechanical performance test
- Electrical performance test
- Safety test
- Environmental protection
3D model
Overview
| Connection type | Bolted connection |
| Number of rows | 1 |
| number of connections | 2 |
| Open-end side panels | Yes |
| Insulation Materials | PA |
| Flame retardant grade, in line with UL 94 | V0 |
| Insulating material group | I |
| standard test | IEC60947-7-1 |
Dimension
| width | 27mm |
| End plate width | 2.2mm |
| Height | 51mm |
| NS 35/7,5 Height | 58.5mm |
| NS 35/15 Height | 66mm |
| length | 107mm |
Wiring data
| Strip length | 9~10mm |
| Conductor cross section solid AWG | 16~2 |
| Conductor cross section solid | 2.5~35mm² |
| Conductor cross section flexible | 2.5~35mm² |
| Conductor cross section flexible (ferrule without plastic sleeve) | 6~35mm² |
| Conductor cross section flexible (ferrule with plastic sleeve) | 6~35mm² |
IEC Electrical parameters
| Rated voltage (III / 3) | 1000V |
| Rated current (III / 3) | 125A |
| Rated surge voltage | 8KV |
UL Electrical parameters
| Rated voltage | 600V |
| Rated current | 115A |
Environmental conditions
| Ambient temperature (operation) | -40 °C ~ 105 °C（depending on derating curve） |
| Relative humidity (storage/transport) | 25%~75% |
| Ambient temperature (storage / transport) | -25℃~60℃ |
Mechanical performance test
| Mechanical strength | Passed the test |
| Fixing support | Passed the test |
| Rotational Pull Test | Passed the test |
Electrical performance test
| Voltage drop | ≤3.2mV |
| Temperature rise test | ≤45 K |
Safety test
| Anti-finger touch | Passed the test |
Environmental protection
| RoHS | No excessive harmful substances |
| REACh SVHC | Lead 7439-92-1 |
Marker
| Top marker bar | ZT12 / ZS12 |
| Side marking strip | / |
Accessories
| A screwdriver | 1.0x5.5 |
| Bridge components | BS6-VB2 / BS6-VB3 |
| End plate | / |
| Grouping partition | / |
Installation
| Terminal fixing components | E-PC 1100A / E-WS N |
| Terminal strip marking bracket | DLM2 / KLM3-20x8 / KLM3-44x8 |
| DIN rail | NS35/7.5-1000-00A(H) |
| Guide rail protection cover | / |
| Order number | 11070000005 |
| Packing unit | 9 |
| Minimum order quantity | 9 |
| Products weight (without packaging) | 99.93 |
