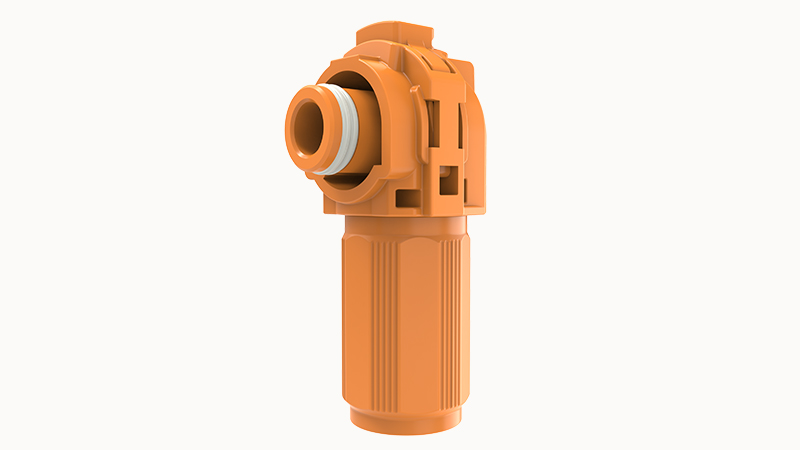

ESP-200A-50-OR-00(01)
ESP-200A-50-OR-00(01)
28010000408
Energy storage connector; UL, TUV certified; orange; Product range: ESP plug, wire cross section: 50mm²; rated voltage 1500V; rated current 200A; protection grade IP67
Color
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ IP67 dust and water resistance☑ Optional secondary lock structure to prevent accidental unlocking
☑ The overall size is 7.4mm shorter than the standard model
☑ Complete certification, UL and TUV certification
- 3D model
- Overview
- Wiring data
- Technical parameter
- Environmental parameters
- Electrical parameters UL
- Marking material
- Standards and specifications
- Electrical parameters
- Environmental data
3D model
Overview
| Insulation Materials | PA |
Wiring data
| Cable outer diameter | 12.5~14mm |
| Wiring mode | Crimp |
Technical parameter
| Mechanical life | ≥100次 |
Environmental parameters
| Degree of protection | MatchingIP67 |
Electrical parameters UL
| Rated voltage | 1500V |
Marking material
| Flammability rating | V0 |
Standards and specifications
| Standard/Specification | UL4128 |
Electrical parameters
| Rated current | 200A |
| Insulation resistance | >5000MΩ |
| Contact resistance | ≤0.5mΩ |
Environmental data
| Ambient temperature (operation) | -40℃~125℃(depending on derating curve) |
Electrical parameter
| Rated voltage | 1500V | ||
| Rated current | 200A |
| Order number | 28010000408 |
| Packing unit | 50 |
| Minimum order quantity | / |
| Products weight (without packaging) | 59 |
Matching parts
- All supporting products（4）
- Related products（1）
Filter by product parameters
ESS-200A-50-B-OR-90
Energy Storage Connector, Product range: ESS socket, Color: orange, Wire cross section: 50 mm², Rated voltage: 1500V, Rated current: 200 A, Connection method: Busbar, Contact type: Pin
ESS-200A-50-S-OR-90
Energy Storage Connector, Product range: ESS socket, Color: orange, Wire cross section: 50 mm², Rated Voltage: 1500V, Rated current: 200 A, Connection method: Screw, Contact type: Pin
ESS-200A-50-C-OR-90
Energy Storage Connector, Product range: ESS socket, Color: orange, Wire cross section: 50 mm², Rated voltage: 1500V, Rated current: 200 A, Connection method: Crimp, Contact type: Pin
ESS-200A-50-B/S-OR-90
Energy Storage Connector, Product range: ESS socket, Color: orange, Wire cross section: 50 mm², Rated voltage: 1500V, Rated current: 200 A, Connection method: Busbar/Screw, Contact type: Pin
