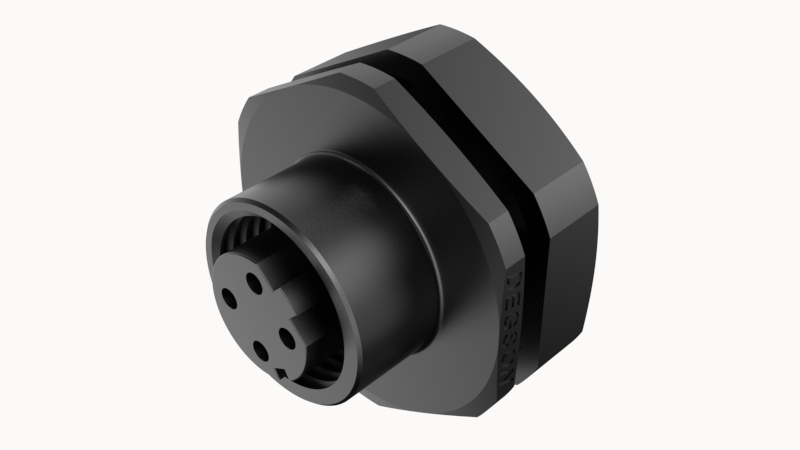

SD-M12D-04P-FF-SH8008-00A(H)
20030002481

All plastic series/sensor/actuator, pin socket,M12, female seat, code D, plate front /M16*1.5 thread mount, Soldering cup

Pin
  1. 04
comparison

Products type

Only 4 products can be compared each time. Please select the products you want to replace.

    • Overview
    • Technical data
    • Accessories
    • Certification
    • Business data
    • Download

    Product certification

    Product advantages

    ☑ Sealing optimization, protection level up to IP67
    ☑ Meet the harsh environment
    ☑ Suitable for various occasions connection technology
    ☑ Compatible with the international and domestic same series products
    1. 3D model
    2. Overview
    3. IEC Electrical parameters
    4. Environmental conditions
    5. General parameters
    6. Material
    7. Standards and specifications

    3D model

    Overview

    Flame retardant grade, in line with UL 94V0

    IEC Electrical parameters

    Pollution level3

    Environmental conditions

    Ambient temperature-25℃...80℃
    IP classIP68

    General parameters

    Rated current4A
    60V
    Insulation resistance≥ 100 MΩ
    Overvoltage level
    Insertion and pullout cycle≥ 100
    Torque 0.4 Nm

    Material

    Contact material CuZn
    Material contact surfaceAu
    Contact carrier materialPA
    Sealing materialSilicon

    Standards and specifications

    Standards/specificationsIEC 61076-2-101
    Order number 20030002481
    Packing unit /
    Minimum order quantity 100
    Products weight (without packaging) /
