SD-M12A-03P-MM-SF8008-00A(H)
20030002415

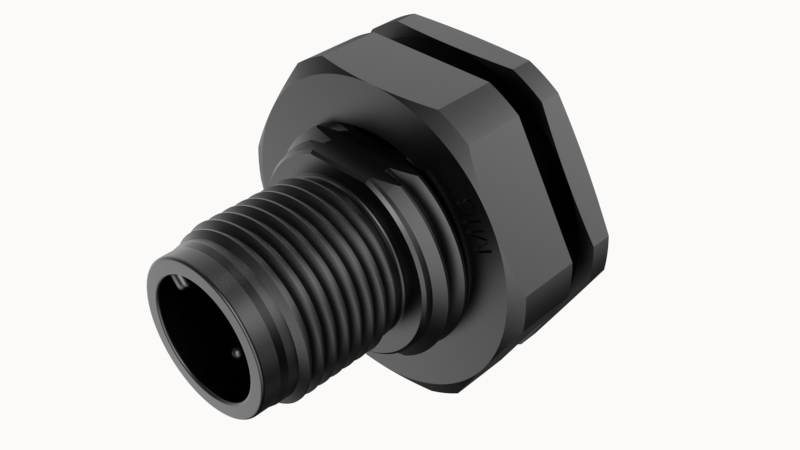

All-plastic series / Sensor / Actuator, pin socket, M12, male, code A, board rear / M16*1.5 threaded installation, Soldering cup
Pin
- 03
- 05
- 06
- 08
- 10
- 12
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ Sealing optimization, protection level up to IP67☑ Meet the harsh environment
☑ Suitable for various occasions connection technology
☑ Compatible with the international and domestic same series products
- 3D model
- Overview
- IEC Electrical parameters
- Environmental conditions
- General parameters
- Material
- Standards and specifications
3D model
Overview
| Flame retardant grade, in line with UL 94 | V0 |
IEC Electrical parameters
| Pollution level | 3 |
Environmental conditions
| Ambient temperature | -25℃...80℃ |
| IP class | IP68 |
General parameters
| Rated current | 4A |
| 60V | |
| Insulation resistance | ≥ 100 MΩ |
| Overvoltage level | Ⅱ |
| Insertion and pullout cycle | ≥ 100 |
| Torque | 0.4 Nm |
Material
| Contact material | CuZn |
| Material contact surface | Au |
| Contact carrier material | PA |
| Sealing material | Silicon |
Standards and specifications
| Standards/specifications | IEC 61076-2-101 |
| Order number | 20030002415 |
| Packing unit | / |
| Minimum order quantity | 100 |
| Products weight (without packaging) | / |
