SD-M12A-03P-FF-SH8D50-00A(H)
20030002408

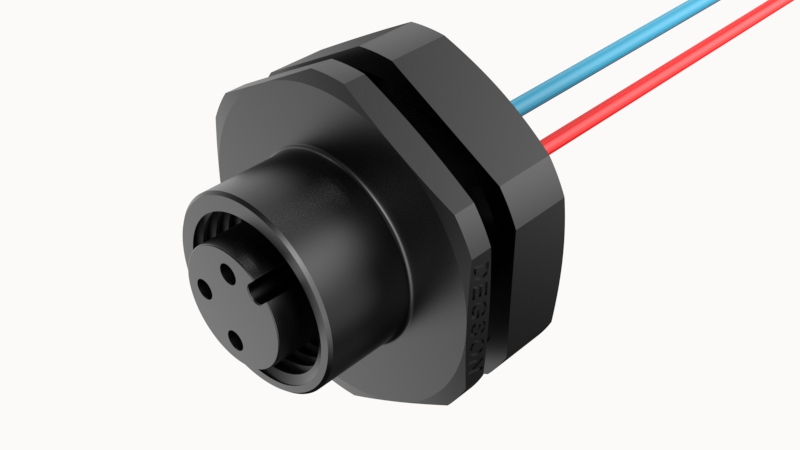

All plastic series/sensor/actuator, pin socket,M12, female seat, code A, plate front /PG9 threaded mounting, with 0.5m electronic wire
Pin
- 03
- 04
- 05
- 08
- 10
- 12
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ Sealing optimization, protection level up to IP67☑ Meet the harsh environment
☑ Suitable for various occasions connection technology
☑ Compatible with the international and domestic same series products
- 3D model
- Overview
- IEC Electrical parameters
- Environmental conditions
- General parameters
- Material
- Standards and specifications
- Cable
3D model
Overview
| Flame retardant grade, in line with UL 94 | V0 |
IEC Electrical parameters
| Pollution level | 3 |
Environmental conditions
| Ambient temperature | -25℃...80℃ |
| IP class | IP68 |
General parameters
| Rated current | 4A |
| 60V | |
| Insulation resistance | ≥ 100 MΩ |
| Overvoltage level | Ⅱ |
| Insertion and pullout cycle | ≥ 100 |
| Torque | 0.4 Nm |
Material
| Contact material | CuZn |
| Material contact surface | Au |
| Contact carrier material | PA |
| Sealing material | Silicon |
Standards and specifications
| Standards/specifications | IEC 61076-2-101 |
Cable
| UL AWM form | UL1061 |
| Conductor insulation material | PVC |
| Conductor material | Tinned copper |
| Insulation resistance | ≥ 20 MΩ |
| Conductor resistance | Maximum 94.2Ω/km (at 20 °C) ) |
| Nominal cable voltage | 300V |
| Cable test voltage | 2000V |
| Order number | 20030002408 |
| Packing unit | / |
| Minimum order quantity | 100 |
| Products weight (without packaging) | / |
