PP-M12B-05P-FF-SL8C01-00A(H)
20030002194

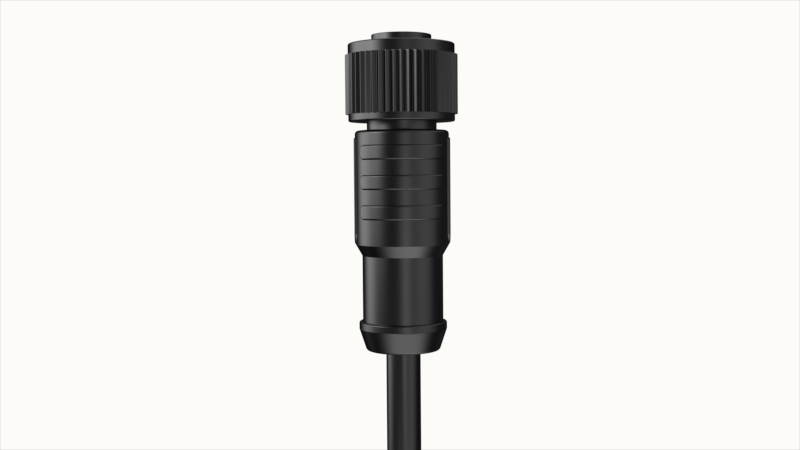

All-plastic series / Sensor / Actuator cable, PVC, through-hole plug, female, straight M12, code B, end flush, cable with connector length: 1m
Pin
- 05
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ Sealing optimization, protection level up to IP67☑ Meet the harsh environment
☑ Suitable for various occasions connection technology
☑ Compatible with the international and domestic same series products
- 3D model
- Overview
- Dimension
- IEC Electrical parameters
- Environmental conditions
- General parameters
- Material
- Standards and specifications
- Cable
- Material data
3D model
Overview
| Flame retardant grade, in line with UL 94 | V0 |
Dimension
| Cable length | 1m |
IEC Electrical parameters
| Pollution level | 3 |
Environmental conditions
| Ambient temperature | -25℃...80℃ |
| IP class | IP68 |
General parameters
| Rated current | 4A |
| 250V | |
| Insulation resistance | ≥ 100 MΩ |
| Overvoltage level | Ⅱ |
| Insertion and pullout cycle | ≥ 100 |
| Torque | 0.4 Nm |
Material
| Flammability rating ,in line with UL97 | HB |
| Material contact surface | Au |
| Contact carrier material | PA |
| PU | |
| Fixture body material | TPU |
| Sealing material | Silicon |
Standards and specifications
| Standards/specifications | IEC 61076-2-101 |
Cable
| UL AWM form | UL2517 |
| UL20549 | |
| Outer sheath, material | PUR |
| PVC | |
| Conductor insulation material | PVC |
| Conductor material | Tinned copper |
| Insulation resistance | ≥100MΩ |
| Conductor resistance | Maximum 59.4Ω/km (at 20 °C) ) |
| Nominal cable voltage | 300V |
| Cable test voltage | 2000V |
| Flame retardant | Comply with UL 758/1581 FT1 standard |
| Halogen free | Yes |
Material data
| Contact material | Copper alloy |
| Order number | 20030002194 |
| Packing unit | / |
| Minimum order quantity | 100 |
| Products weight (without packaging) | / |
