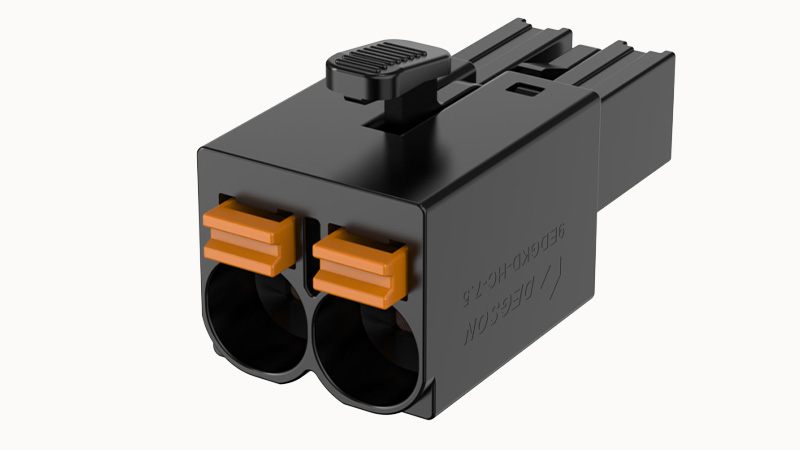

9EDGKD-HC-7.5-02P
10020010321

Pluggable terminal blocks,Rated current:25A.Rated voltage (III/2):800V,pitch:7.5mm,Color:black,Contact surface :Sn

Color
Poles
  1. 02P
  2. 03P
  3. 04P
  4. 05P
  5. 06P
  6. 07P
  7. 08P
  8. 09P
  9. 10P
comparison

Products type

Only 4 products can be compared each time. Please select the products you want to replace.

    • Overview
    • Technical data
    • Accessories
    • Certification
    • Business data
    • Download

    Product certification

    Product advantages

    ☑ Push-in spring connection, easy wiring
    ☑ SNAP-LOCK series, with self-locking buckle
    1. 3D model
    2. Packaging information
    3. Processing notes
    4. Connection capacity
    5. Electrical parameters UL
    6. Electrical parameters IEC
    7. Item properties
    8. Material data
    9. Mechanical tests
    10. Environmental data

    3D model

    Packaging information

    Type of packagingbox-packed

    Processing notes

    ProcessWave soldering/manual soldering

    Connection capacity

    Conductor cross section solid1.0~6mm²
    Conductor cross section flexible1.0~6.0mm²
    AWG18~10AWG
    Strip length 12mm

    Electrical parameters UL

    Rated voltage (B)600V
    Rated voltage (C)600V
    Rated current (B)25A
    Rated current (C)25A

    Electrical parameters IEC

    Rated voltage800V
    Rated voltage(III/3)630V
    Rated current25A
    Rated voltage(III/2)800V
    Rated voltage(II/2)1000V
    Rated surge voltage(III/2)6KV
    Rated surge voltage(II/2)6KV

    Item properties

    Connection methodPush-in spring connection
    Pitch7.5mm
    Number of potentials2
    Pluggable or notYes
    Number of rows1

    Material data

    Environmental itemsCompliant with REACH/RoHS
    Contact materialCopper alloy
    Contact point metal surfacetin-plated
    Contact zone metal surfacetin-plated
    Insulation MaterialsPA66
    Shell colorBlack
    Insulating material group
    Flammability rating UL94V-0

    Mechanical tests

    Test Specification IEC61984/ UL1059

    Environmental data

    Relative humidity (storage/transport) 30% ~ 70%
    Ambient temperature (assembly)-5℃~100℃
    Ambient temperature (operation) -40℃~105℃(depending on derating curve)
    Ambient temperature (storage / transport) -40℃~70℃
    1. Tool
    2. Enclosure

    Tool

    Bolt driver /
    Line taking Tool /

    Enclosure

    Code strip 2EDG-PWI
    Bridge components /
    Marking bar /
    Else /

    VDE parameters

    Overvoltage category/pollution level III/3 III/2 II/2
    Rated voltage / / /
    Rated current / / /
    Wiring capacity / / /

    UL parameters

    Application category B C D
    Rated voltage 600V 600V /
    Rated current 25A 25A /
    AWG / / /
    Order number 10020010321
    Packing unit 400
    Minimum order quantity
    Products weight (without packaging) 6.439
    3D
    9EDGKD-HC-7.5-02P-1Y-00Z(H).stp Download
    CAD Data
    9EDGKD-HC-7.5-XXP-1Y-00Z(H).dxf Download
    Data
    9EDGKD-HC-7.5-XXP-1Y-00Z(H).pdf Download
