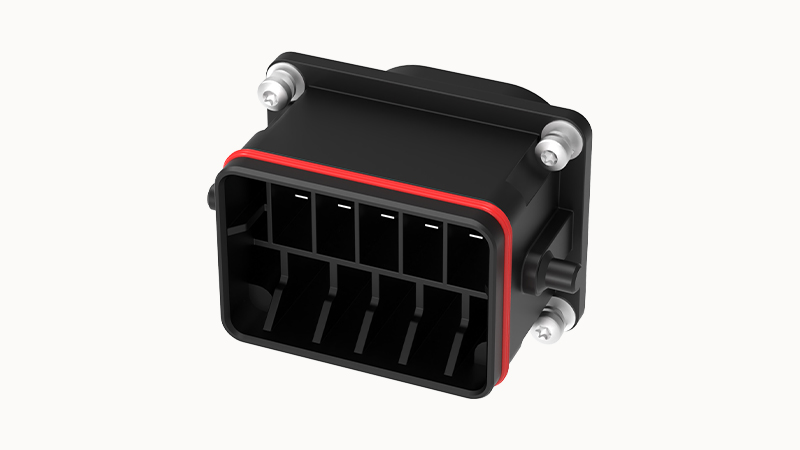

PV-AC-S-05P-00Z(H)
29030000083
Suitable for wiring at the photovoltaic AC terminal; featuring a spring-type connection, it facilitates wiring and accommodates a wide range of wire diameters and specifications; voltage 600V, rated current 35A, protection level IP67
Pin
- 05P
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ Spring-type connection makes wiring more convenient☑ Suitable for wiring with multiple wire diameters
- 3D model
- Overview
- Environmental conditions
- Technical parameter
- Cable
- Electrical parameters
- Technical specification
3D model
Overview
| Flame retardant grade, in line with UL 94 | V0 |
Environmental conditions
| Ambient temperature (operation) | -40 °C ~ 85 °C |
Technical parameter
| insulation resistance | ≥500MΩ |
Cable
| Certification | TUV |
Electrical parameters
| Rated voltage | 600V |
| Rated current | 35A |
| Insulation resistance | >5000MΩ |
Technical specification
| Contact resistance | ≤10mΩ |
Annex
| Dust Cover | / |
TUV parameters
| Rated Voltage | 600V | / | / |
| Rated Current | 35A | / | / |
| Wiring Capacity | 10-12mm | 12-16mm | 16-21mm |
| Order number | 29030000083 |
| Packing unit | 40 |
| Minimum order quantity | / |
| Products weight (without packaging) | 110 |
