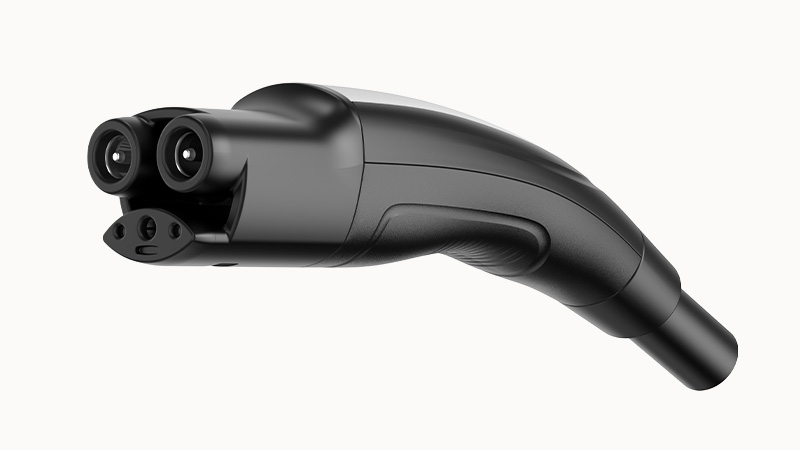

MTDC-T-040A-V5-03-5.0M-10A(H)
22100000048
Vehicle-side charging gun, compliant with SAE J3400 and UL2251 standards, enables rapid DC (Direct Current) charging for electric vehicles (EVs) via Tesla vehicle sockets, designed for commercial charging stations.
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ Local potting process, lightweight design, all internal electronic components are fully sealed☑ High protection performance standard, supports charging at 5000M altitude, and features IP67 protection rating for the main body
☑ Thin-diameter cable, remains flexible in low-temperature conditions, enabling convenient and easy charging
☑ Reliable materials, capable of withstanding 1-meter drop and 2-ton vehicle rolling
☑ Power contact surfaces are silver-plated, reducing relative insertion and extraction under contact resistance conditions
- 3D model
- Dimension
- Environmental conditions
- Cable
- Mechanical properties
- Electrical characteristics
- Mechanical properties
- Marking material
- Cable
- Material data
3D model
Dimension
| Vehicle connector width | 41.5mm（Vehicle charging connector） |
| Vehicle connector depth | 194.3mm（Vehicle charging connector） |
| Cable length | 5000±100mm |
| Strip length | 100±10mm |
Environmental conditions
| Ambient temperature (storage / transport) | -40 °C ~ 80 °C |
| Ambient temperature (operation) | -40℃~50℃ |
| Maximum altitude | 3000m（Above sea level） |
| IP class | Type 3R |
Cable
| Cable composition | 2*8AWG+1*10AWG+8*22AWG |
| Cable outer diameter | 15.0±0.5mm |
Mechanical properties
| Pull out force | <90N |
| Insertion force | <90N |
Electrical characteristics
| Maximum charge power | 3.5KW |
| 40KW | |
| Phase | 1 |
| Power pin quantity | 3 |
| Rated current of high-power contacts | 40A |
| Power contact rated voltage | 1000 |
| Quantity of signal contacts | 2 |
| Signal contact rated current | 2 |
| Signal contact rated voltage | 30 |
| Signal transmission type | Pulse width adjustment |
Mechanical properties
| Insertion/pullout cycle | 10000 |
Marking material
| Shell color | black |
| Cover color | black |
| Customization basis | Provided according to customer requirements |
| Shell material | Plastic |
| Handle material area | Plastic |
| Protective cover material | Soft plastic |
| Flammability rating | V0 |
| Contact surface material | Ag |
Cable
| Wiring standard | UL62 |
| Wiring level | 5 class |
| Wire type | Straight line |
| Outer sheath,color | black |
| Outer sheath, material | TPE |
Material data
| Environmental items(Compliant with REACH/RoHS ) | Yes |
UL parameters
| Rated voltage | 1000V | ||
| Rated current | 40A |
| Order number | 22100000048 |
| Packing unit | 1PCS/box |
| Minimum order quantity | 1 |
| Products weight (without packaging) |
| Data | |
|---|---|
| MTDC-T-040A-V5-03-5.0M-10A(H).pdf | Download |
