MTDC-S-200A-V5-03-5.0M-10A(H)
22100000025

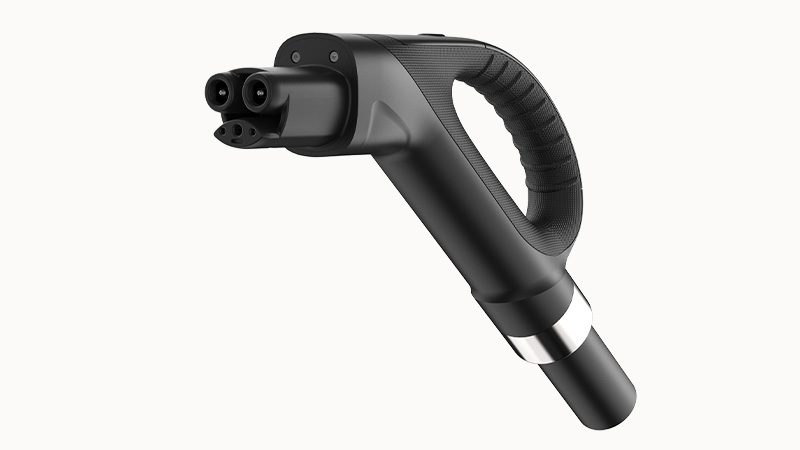

Vehicle-side charging gun, compliant with SAE J3400 and UL2251 standards, enables rapid DC (Direct Current) charging for electric vehicles (EVs) via Tesla vehicle sockets, designed for commercial charging stations.
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ High protection performance standard, main body IP67 waterproof and dustproof☑ Replaceable power terminals and gun head, extending service life and reducing operation and maintenance costs
☑ Ultrasonic welding, reducing terminal contact resistance and improving terminal thermal safety coefficient
☑ Reliable materials, capable of withstanding 1-meter height drop and 2-ton vehicle rolling
☑ Fully insulated product with comfortable grip, safe and reliable
- 3D model
- Dimension
- Environmental conditions
- Cable
- Environment condition
- Mechanical properties
- Electrical characteristics
- Mechanical properties
- Marking material
- Cable
- Material data
3D model
Dimension
| Strip length | 200±10mm |
| Vehicle connector width | 41.5mm（Vehicle charging connector） |
| Vehicle connector depth | 272mm |
| Cable length | 5000±100mm |
Environmental conditions
| Ambient temperature (operation) | -40℃~50℃ |
| Maximum altitude | 5000m(Above sea level ) |
| IP class | Type 3R |
Cable
| Cable composition | 4*3AWG+14AWG+4*2*18AWG |
| Cable outer diameter | 28.5mm |
| Minimum bend radius | 175mm |
Environment condition
| Ambient temperature (storage/transportation) | -40°C ~ +80°C |
Mechanical properties
| Pull out force | <90N |
| Insertion force | <90N |
Electrical characteristics
| Maximum charge power | 3.5KW |
| 200KW | |
| Phase | 1 |
| Power pin quantity | 3 |
| Rated current of high-power contacts | 200A |
| Power contact rated voltage | 1000 |
| Quantity of signal contacts | 2 |
| Signal contact rated current | 2 |
| Signal contact rated voltage | 30 |
| Signal transmission type | Pulse width adjustment |
Mechanical properties
| Insertion/pullout cycle | 10000 |
Marking material
| Shell color | black |
| Cover color | black |
| Customization basis | Provided according to customer requirements |
| Shell material | Plastic |
| Handle material area | Plastic |
| Protective cover material | Soft plastic |
| Flammability rating | V0 |
| Contact surface material | Ag |
Cable
| Wiring standard | UL62 |
| Wiring level | 5 class |
| Certification | UL |
| Wire type | Straight line |
| Outer sheath,color | black |
| Outer sheath, material | TPE |
Material data
| Environmental items(Compliant with REACH/RoHS ) | Yes |
UL parameters
| Rated voltage | 1000V | ||
| Rated current | 200A |
| Order number | 22100000025 |
| Packing unit | 1PCS/box |
| Minimum order quantity | 1 |
| Products weight (without packaging) |
| Data | |
|---|---|
| MTDC-S-200A-V5-03-5.0M-10A(H).pdf | Download |
