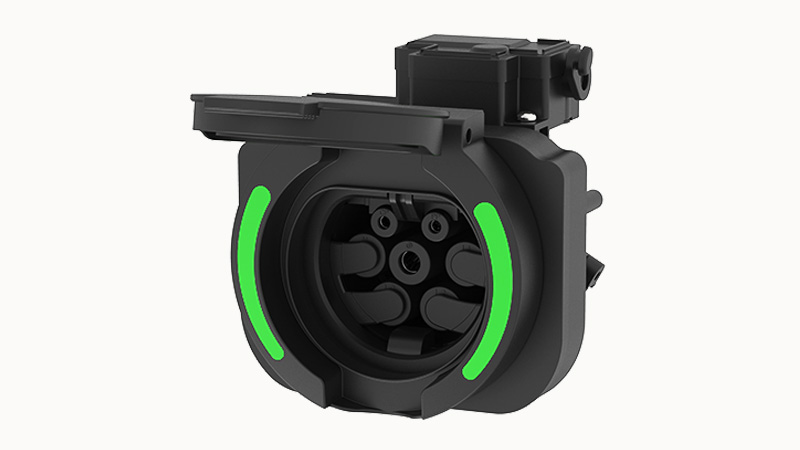

FEAC-S-063A-P216-03-0.5M-10A(H)
.jpg)
FEAC-S-063A-P216-03-0.5M-10A(H)
22070000192
AC pile end charging socket, Type 2, IEC62196-2022, 16A/250V (AC), Cable: 0.5m, with light strip, baffle, temperature sensor, actuator, IP67 (IP54 optional)
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ IP67 protection level (housing), effectively dustproof and waterproof, ensuring charging safety☑ Free product combination, mix and match as desired
☑ PCB light strip with controllable dimming
☑ Fully insulated design for comfortable grip, safe and reliable
- 3D model
- Dimension
- UL Electrical parameters
- Environmental conditions
- General data
- Electrical characteristics
- Mechanical properties
- Marking material
- Environmental Product Compliance
3D model
Dimension
| Vehicle connector width | 100mm |
| Cable length | 5000±100mm |
| Strip length | 100±10mm |
UL Electrical parameters
| Rated current | 63A |
Environmental conditions
| Ambient temperature (operation) | -40℃~50℃ |
| Maximum altitude | 5000m(Above sea level ) |
General data
| Protection level | IP67 |
Electrical characteristics
| Phase | 1 |
| Power contact rated voltage | 250 |
Mechanical properties
| Insertion force | < 100N |
| Pull out force | < 100N |
Marking material
| Shell color | black |
Environmental Product Compliance
| REACH | conform |
| China RoHS | conform |
Appendix
| / | / |
IEC parameters
| Rated voltage | / | / | 250V |
| Rated current | / | / | 63A |
| Order number | 22070000192 |
| Packing unit | 1 |
| Minimum order quantity | |
| Products weight (without packaging) | 0.7kg |
| 3D | |
|---|---|
| FEAC-S-063A-P216-03-0.5M-10A(H).stp | Download |
