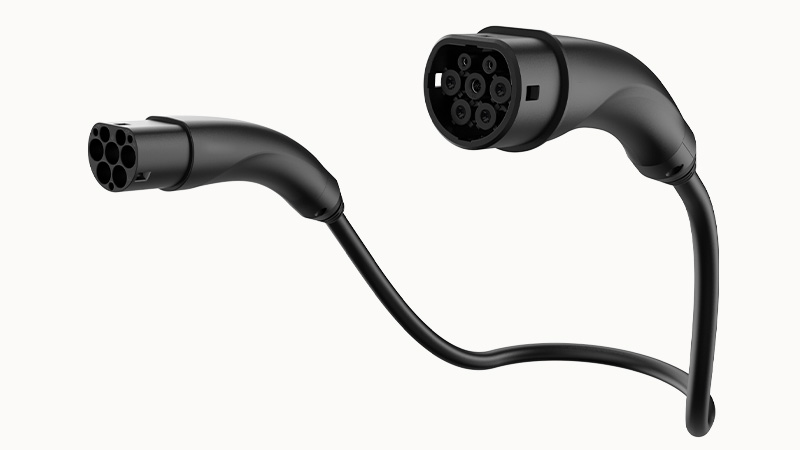

MEAC-T-016A-V22P22-03-5.0M-10A(H)
.jpg)
MEAC-T-016A-V22P22-03-5.0M-10A(H)
22020000787
Mobile AC charging cable with vehicle charging plug for charging electric vehicles (EVs) with alternating current (AC) via type 2 vehicle socket and charging post supply plu, Type 2, IEC62196-2022, 16A/480V (AC), DEGSON logo, Cable: 5m, black
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ IP67 protection level (Housing), effectively dustproof and waterproof,ensuring charging safety☑ Supports customized spring cables
☑ Flexible cable,convenient charging
☑ The product is fully insulated, comfortable to hold, safe and reliable
- 3D model
- Dimension
- Environmental conditions
- General data
- Electrical characteristics
- Mechanical properties
- Marking material
- Environmental Product Compliance
- Cable
- Material data
3D model
Dimension
| Vehicle connector height | 93.9mm(Vehicle charging connector) |
| Vehicle connector width | 51.1mm(Vehicle charging connector) |
| Vehicle connector depth | 208.mm(Vehicle charging connector) |
| Cable length | 5000±100mm |
| Strip length | 100±10mm |
Environmental conditions
| Ambient temperature (operation) | -40℃~50℃ |
| Maximum altitude | 5000m(Above sea level ) |
General data
| Protection level | IP67 |
Electrical characteristics
| Maximum charge power | 13KW |
| Phase | 3 |
| Power pin quantity | 3 |
| Rated current of high-power contacts | 20A |
| Power contact rated voltage | 480 |
| Quantity of signal contacts | 2 |
Mechanical properties
| Insertion force | < 100N |
| Pull out force | < 100N |
Marking material
| Shell color | black |
| EV charger color | black |
| Cover color | black |
| Contact surface material | Ag |
Environmental Product Compliance
| China RoHS | conform |
Cable
| Wiring standard | EN50620 |
| IEC62893.3 | |
| Certification | CE |
| CB | |
| TUV |
Material data
| Flammability rating | UL94V-0 |
Appendix
| Socket | FEAC-V-01A（H） |
IEC parameters
| Rated voltage | / | / | 480V |
| Rated current | / | / | 16A |
| Order number | 22020000787 |
| Packing unit | 1 |
| Minimum order quantity | |
| Products weight (without packaging) | 1.9kg |
