Product certification
Product advantages
☑ IP67 protection (connector body) effectively protects against dust and water, ensuring safe charging☑ Fully insulated, comfortable to hold, safe and reliable
☑ Replaceable power terminals and gun tips extend gun life and reduce maintenance costs
☑ Hexagonal crimping reduces terminal contact resistance and improves thermal safety
☑ Thin-diameter cable remains flexible at low temperatures, ensuring convenient charging
- 3D model
- Dimension
- UL Electrical parameters
- Environmental conditions
- Cable
- Environmental parameters
- Electrical characteristics
- Mechanical properties
- Marking material
- Environmental Product Compliance
- Cable
- Electrical parameters

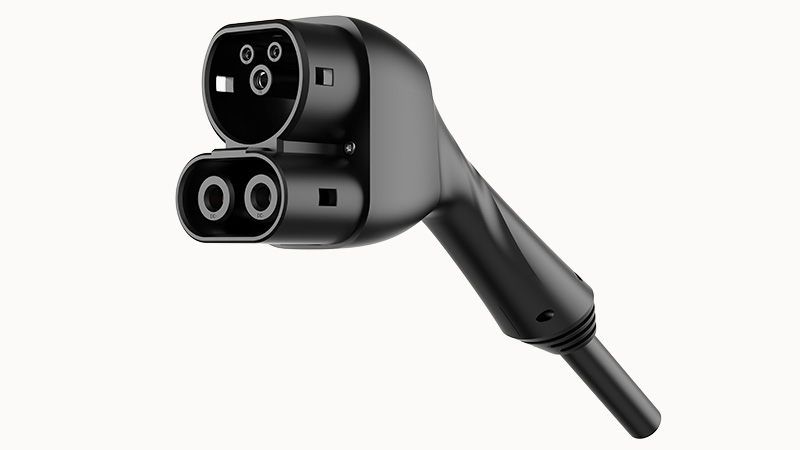

3D model
Dimension
| Vehicle connector height | 100mm(Vehicle charging connector) |
| Vehicle connector width | 70mm(Vehicle charging connector) |
| Vehicle connector depth | 257.5mm(Vehicle charging connector) |
| Cable length | 5000±100mm |
| Strip length | 100±10mm |
UL Electrical parameters
| Rated current | 20A |
Environmental conditions
| Ambient temperature (storage / transport) | -40 °C ~ 80 °C |
| Ambient temperature (operation) | -40℃~50℃ |
| Maximum altitude | 5000m(Above sea level ) |
Cable
| Cable composition | 2*4mm²+4mm²+3*2*0.75mm² |
| Cable outer diameter | Φ15.5mm±0.5mm |
| Minimum bend radius | 93mm |
Environmental parameters
| Protection level | IP67 |
Electrical characteristics
| Maximum charge power | 3.5KW |
| Phase | 3 |
| Power pin quantity | 3 |
| Quantity of signal contacts | 2 |
| Signal contact rated current | 2 |
| Signal contact rated voltage | 30 |
| Resistance coding | 480Ω |
| Signal transmission type | Pulse width adjustment |
Mechanical properties
| Insertion/pullout cycle | 10000 |
| Insertion force | < 100N |
| Pull out force | < 100N |
Marking material
| Connection material | Copper |
| Shell color | black |
| Actuation component color | Silver |
| Cover color | black |
| Customization basis | Provided according to customer requirements |
| Shell material | Plastic |
| Handle material area | Plastic |
| Protective cover material | Soft plastic |
| Flammability rating | V0 |
| Contact surface material | Ag |
Environmental Product Compliance
| REACH | conform |
| China RoHS | conform |
Cable
| Wiring level | 5 class |
| Certification | TUV |
| Wire type | Straight line |
| Outer sheath,color | black |
Electrical parameters
| Rated current | 1000V |
Appendix
| Socket | FEDC-V-03-01A(H) |
IEC parameters
| Rated voltage | / | / | 1000V |
| Rated current | / | / | 20A |
| Order number | 22020000680 |
| Packing unit | 1 |
| Minimum order quantity | |
| Products weight (without packaging) | 1.9kg |
