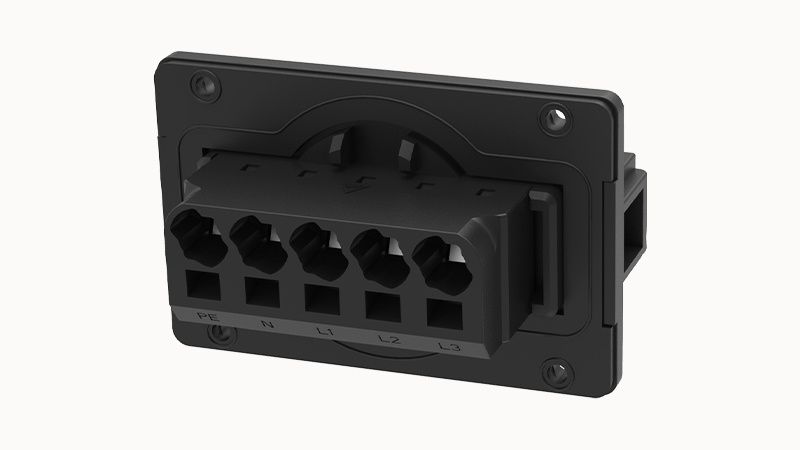

DG043-PV-SC-05P-MM
20140000054
Used in photovoltaic equipment; Rated current 65A; Rated voltage 600V; Withstand voltage 2200V; Wiring mode screw connection; Protection class IP66 (after insertion, can withstand the impact of water flow); TUV certification
Pin
- 05P
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ IP66 dustproof and waterproof☑ TUV certification
- 3D model
- UL Electrical parameters
- Environment condition
- Technical parameter
- Versions
- Environmental parameters
- General parameters
- Material data
- Electrical parameters
3D model
UL Electrical parameters
| Rated current | 65A |
Environment condition
| Ambient temperature (operation) | -40°C ~ +125°C |
Technical parameter
| Connector pull-out force | ≥25N |
Versions
| Female/Male | Female |
Environmental parameters
| Degree of protection | MatchingIP66 |
General parameters
| Insulation resistance | ≥ 100 MΩ |
Material data
| Environmental items | Compliant with REACH/RoHS |
| Flammability rating | UL94V-0 |
Electrical parameters
| Rated voltage | 600V |
Electrical parameter
| Rated voltage | 600V | ||
| Rated current | 65A |
| Order number | 20140000054 |
| Packing unit | 100 |
| Minimum order quantity | / |
| Products weight (without packaging) | 85 |
