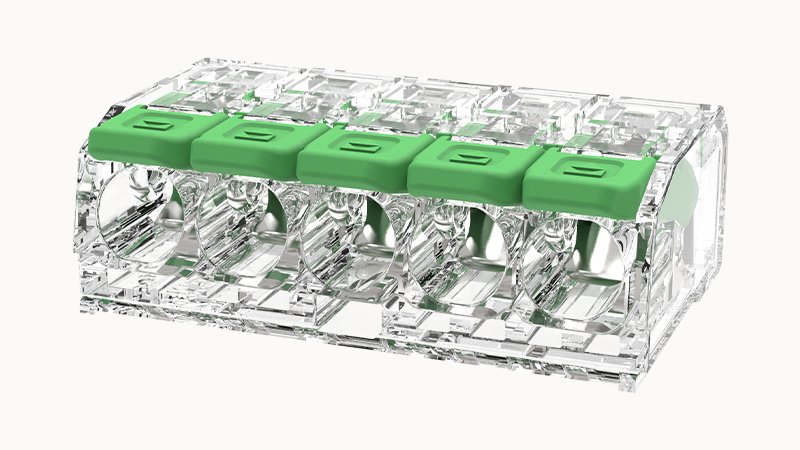

3D model
Connection capacity
| Conductor cross section solid | 0.5~6mm² |
| Conductor cross section flexible | 0.5~6.0mm² |
| AWG | 20~10AWG |
| Strip length | 12mm |
Electrical parameters UL
| Rated voltage (C) | 600V |
| Rated current (C) | 30A |
Electrical parameters IEC
| Rated voltage | 450V |
| Rated current | 41A |
| Rated voltage(III/2) | 450V |
Item properties
| Connection method | Push-in spring connection |
| Pitch | 6.9mm |
| Number of potentials | 5 |
| Pluggable or not | no |
| Number of rows | 1 |
Material data
| Environmental items | Compliant with REACH/RoHS |
| Contact material | copper |
| Contact point metal surface | tin-plated |
| Contact zone metal surface | tin-plated |
| Insulation Materials | PC |
| Insulating material group | Ⅲa |
| Flammability rating | UL94V-2 |
Mechanical tests
| Test Specification | UL1059/IEC60998 |
Environmental data
| Ambient temperature (operation) | -40℃~85℃(depending on derating curve) |
Accessories
| Install accessories | DGBSC-ACC04 |
| Protective board | DGBSC-ACC05 |
