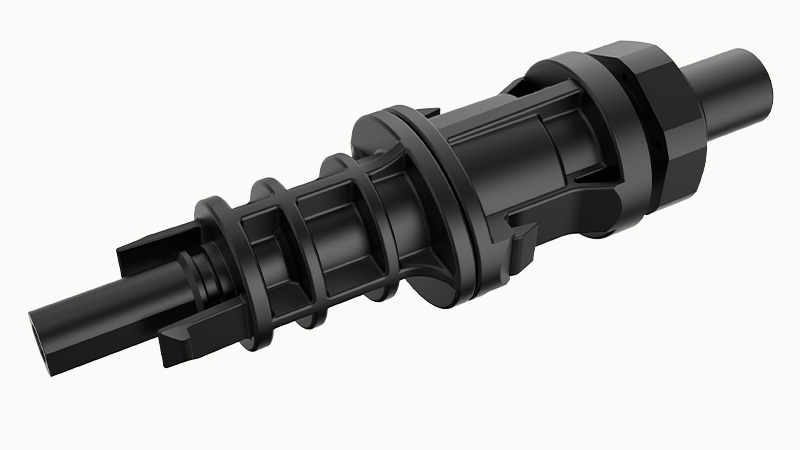

PV-DC connector (With fuse)
29050000036

Rated voltage 1500V, rated current 35A, protection level IP68. Male: PV-DCFU-MF-PSC-01P-30A-8-00Z(H); Female: PV-DCFU-FM-PSC-01P-30A-8-00Z(H)

comparison

Products type

Only 4 products can be compared each time. Please select the products you want to replace.

    • Overview
    • Technical data
    • Accessories
    • Certification
    • Business data
    • Download

    Product certification

    Product advantages

    ☑ IP68 dust and water proof
    ☑ Various fuse models available
    ☑ Manual unlocking, removable snap-on structure
    1. 3D model
    2. UL Electrical parameters
    3. Environmental conditions
    4. Environmental protection
    5. Electrical parameters

    3D model

    UL Electrical parameters

    Rated current30A

    Environmental conditions

    Ambient temperature (operation) -40 °C ~ 85 °C

    Environmental protection

    RoHSNo excessive harmful substances
    REACh SVHCLead 7439-92-1

    Electrical parameters

    Rated voltage1500V

    Electrical parameter

    Rated voltage 1500V DC
    Rated current 35A
    Order number 29050000036
    Packing unit /
    Minimum order quantity /
    Products weight (without packaging) /
    3D
    PV-DC connector(With fuse) Download
    Data
    PV-DCFU-FM-PSC-01P-30A-8-00Z(H).pdf Download
    PV-DCFU-MF-PSC-01P-30A-8-00Z(H).pdf Download
