DGD80-01P-11-00(Z)
30110000050

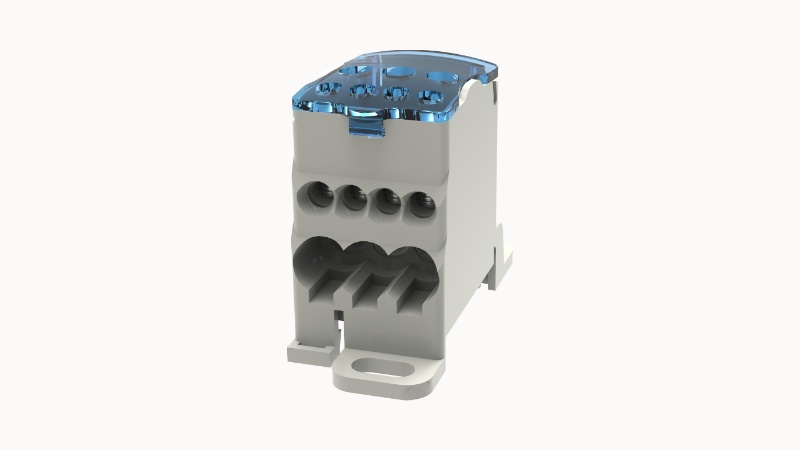

Screw connection, rated voltage: 690V, rated current: 80A, connection capacity: 1, wiring capacity: incoming line (6-16) mm ², outgoing line (2.5-6)/(2.5-16) mm ², width: 28mm, color: blue and white, installation method: NS35/7.5
Colour
- 22
Poles
- 80A
- 125A
- 160A
- 250A
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product advantages
☑ Compact design☑ Multi potential distribution
☑ Easy installation
- 3D model
- Overview
- Dimension
- Wiring data
- IEC Electrical parameters
- Environmental conditions
- Mechanical performance test
- Electrical performance test
- Environmental protection
- Electrical parameters
3D model
Overview
| Number of rows | 1 |
| Insulation Materials | PA |
| Flame retardant grade, in line with UL 94 | V0 |
| Insulating material group | I |
| standard test | IEC60947-7-1 |
| Connection method | screw connection |
Dimension
| width | 28mm |
| Height | 48mm |
| NS 35/7,5 Height | 49.2mm |
| NS 35/15 Height | 56.7mm |
Wiring data
| Conductor cross section solid | Input:(6-16)mm² Output:(2.5-6)/(2.5-16)mm² |
| Conductor cross section flexible | Input:(6-16)mm² Output:(2.5-6)/(2.5-16)mm² |
| Conductor cross section flexible (ferrule without plastic sleeve) | Input:(6-16)mm² Output:(2.5-6)/(2.5-16)mm² |
| Conductor cross section flexible (ferrule with plastic sleeve) | Input:(6-16)mm² Output:(2.5-6)/(2.5-16)mm² |
| 2 flexible conductors with a TWIN ferrule | Input:(6-16)mm² Output:(2.5-6)/(2.5-16)mm² |
IEC Electrical parameters
| Rated current (III / 3) | 80A |
| Rated surge voltage | 3V |
| Rated voltage(III/3) | 690V |
Environmental conditions
| Ambient temperature (operation) | -40 °C ~ 85 °C |
Mechanical performance test
| Mechanical strength | Passed the test |
| Fixing support | Passed the test |
| Rotational Pull Test | Passed the test |
Electrical performance test
| Voltage drop | ≤3.2mV |
| Temperature rise test | ≤45 K |
Environmental protection
| RoHS | No excessive harmful substances |
Electrical parameters
| Strip length | 9.0mm |
| Order number | |
| Packing unit | |
| Minimum order quantity | |
| Products weight (without packaging) |
