BS16
11070000039

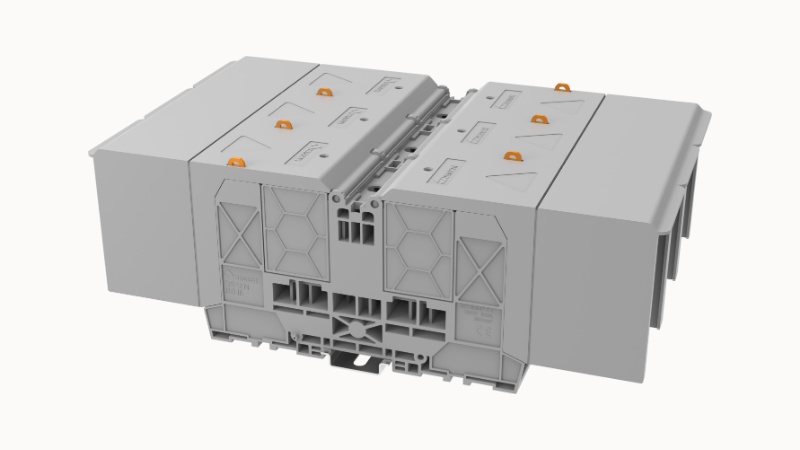

Screw-type rail terminal, connection method: bolt connection, with protective cover, rated voltage: 1500V, rated current: 125A, connection quantity: 2, digit: 1, wiring capacity: 10 - 300mm², AWG: 16 - 2, width: 54.8mm, color: gray, installation method: NS35/7.5, NS35/15
Color
Poles
- 01P
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
- 3D model
- Overview
- Dimension
- Wiring data
- IEC Electrical parameters
- IEC Electrical parameters
- UL Electrical parameters
- Mechanical performance test
- Electrical performance test
- Safety test
- Environmental protection
3D model
Overview
| Connection type | Bolted connection |
| Number of rows | 1 |
| number of connections | 3 |
| Open-end side panels | Yes |
| Insulation Materials | PA |
| Flame retardant grade, in line with UL 94 | V0 |
| Insulating material group | I |
| standard test | IEC60947-7-1 |
Dimension
| width | 54.8mm |
| NS 35/7,5 Height | 99.8mm |
| NS 35/15 Height | 107.3mm |
| length | 283.4mm |
Wiring data
| Strip length | The stripping length depends on the specification provided by the cable lug manufacturer. |
| Nominal cross section | 300mm² |
IEC Electrical parameters
| Rated current(III / 3) | 520A |
| Rated voltage (III / 3) | 1500V |
IEC Electrical parameters
| Rated surge voltage | 8KV |
UL Electrical parameters
| Rated voltage | 600V |
| Rated current | 540A |
Mechanical performance test
| Mechanical strength | Passed the test |
| Fixing support | Passed the test |
| Rotational Pull Test | Passed the test |
Electrical performance test
| Voltage drop | ≤3.2mV |
| Temperature rise test | ≤45 K |
Safety test
| Anti-finger touch | Passed the test |
Environmental protection
| RoHS | No excessive harmful substances |
| REACh SVHC | Lead 7439-92-1 |
Marker
| Top marker bar | ZT12 / ZS12 |
| Side marking strip | / |
Accessories
| A screwdriver | / |
| Bridge components | / |
| End plate | / |
| Grouping partition | / |
Installation
| Terminal fixing components | E-PC 1100A / E-WS N |
| Terminal strip marking bracket | DLM2 / KLM3-20x8 / KLM3-44x8 |
| DIN rail | NS35/7.5 |
| Guide rail protection cover | / |
| Order number | |
| Packing unit | |
| Minimum order quantity | |
| Products weight (without packaging) |
