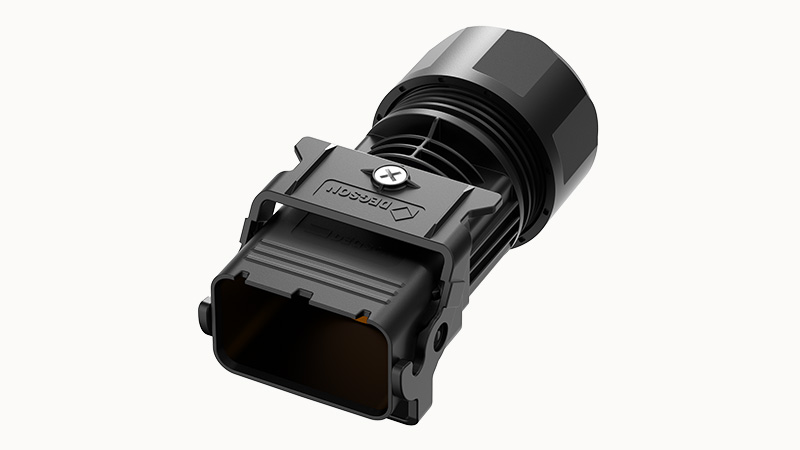

PV-AC-P-03P-80A-00Z(H)
PV-AC-P-03P-80A-00Z(H)
29010000019
3-pin 80A AC connector, suitable for residential and C&I single-phase inverters. Rated voltage 600V, rated current 80A, TUV certified, IP66 protection rating.
cores
- 3Pin
- Overview
- Technical data
- Accessories
- Certification
- Business data
- Download
Product certification
Product advantages
☑ Screw-type terminals ensure a more stable connection and higher torque, facilitating easier wiring for customers☑ High current capacity: supports up to 80A, suitable for a wider range of applications
☑ IP66-rated protection
☑ Secondary locking mechanism requiring a tool for unlocking
- 3D model
- Wiring data
- UL Electrical parameters
- Environmental conditions
- Electrical performance
- Technical parameter
- General parameters
- Cable
- Electrical parameters
3D model
Wiring data
| Wiring mode | Crimp |
UL Electrical parameters
| Rated voltage | 600V |
Environmental conditions
| Maximum altitude | 3000m（Above sea level） |
| IP class | IP66 |
Electrical performance
| Flame retardant grade | UL94-V0 |
Technical parameter
| insulation resistance | ≥500MΩ |
General parameters
| Pollution level | 3 |
Cable
| Certification | TUV |
Electrical parameters
| Rated current | 80A |
Dust cover
| PV-AC-CAP-03P-80A-00Z(H) | 29010000021 |
Dust cover
| PV-AC-CAP-03P-80A-00Z(H) |
| Order number | |
| Packing unit | |
| Minimum order quantity | |
| Products weight (without packaging) |
Matching parts
- All supporting products（1）
- Related products（0）
Filter by product parameters
PV-AC-S-03P-80A-00Z(H)
3-pin 80A AC connector, suitable for residential and C&I single-phase inverters. Rated voltage 600V, rated current 80A, TUV certified, IP66 protection rating.
